SIBYLA - Médium

Medium

This module works with the database table PLOTS (item "filter"). The module contains three possibilities:

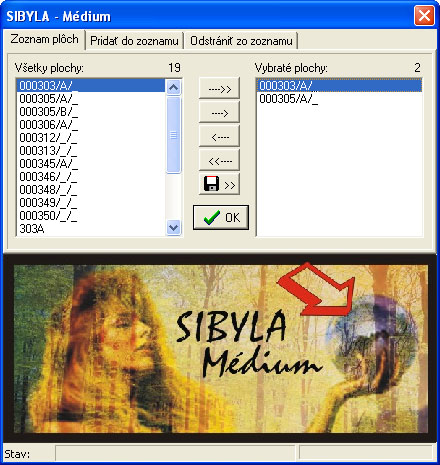

List of plots

This possibility is selected by the bookmark "List of plots". The left part contains all existing simulation plots. The number above the list indicates the total number of plots. The right part comprises the list of the last selected plots including their total number at the top. The list of the selected plots is filled automatically by the module Generator, after running the generation of the structure. You can select one plot from the list either by cursor arrows or by mouse clicking. To select more plots, click mouse and press "CTRL" key at the same time. To select a block of plots, keep "SHIFT" key pressed while selecting the first and the last plot with the mouse. The list can be modified by the following buttons:

	Copy all plots from the left list to the right list.
	Copy the plots selected from the left list to the right list.
	Delete selected plots from the right list.
	Delete all plots from the right list.
	Add plots from an external text file into the right list. The structure of the external text file with the list of plots has to be as follows: each line should contain only the name of the plot (item "stand" in the database), which is followed by "ENTER" character - the end of line.

After you change the list of plots, press the button "OK" to save the list in the database (item "filter"=1 for selected plots in table PLOTS).

Note: Press the button "OK" when you change the list of plots to save the selection in the database before you exit the module !!!

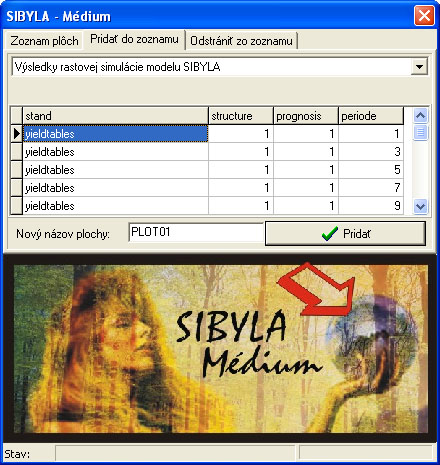

Add to list

This possibility is selected by the tab "Add to list". It contains the table with the list of plots (stand), generated structures (structure), prognoses (prognosis), and periods (periode) from the growth simulations performed for the last time. Select the plot from this table, enter its new name and save by pressing the button "Add". This is the procedure for saving the results of the growth simulations as a new initial status.

Note: If the new name is identical to the name of any already existing plots, the content of the plot will be overwritten with the new content.

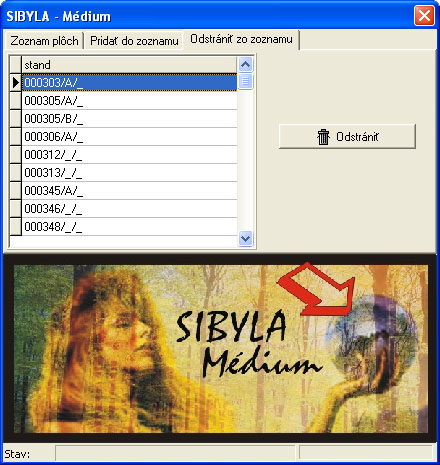

Remove from list

This possibility is selected by the tab "Remove from list". Select the plot and press the button "Remove". All information of this plot will be deleted from all database tables.

Note: Deleting is an irreversible process !!!
